10 E Ontario Place

Chicago, Illinois

Project

Balcony and Exterior Wall Repairs

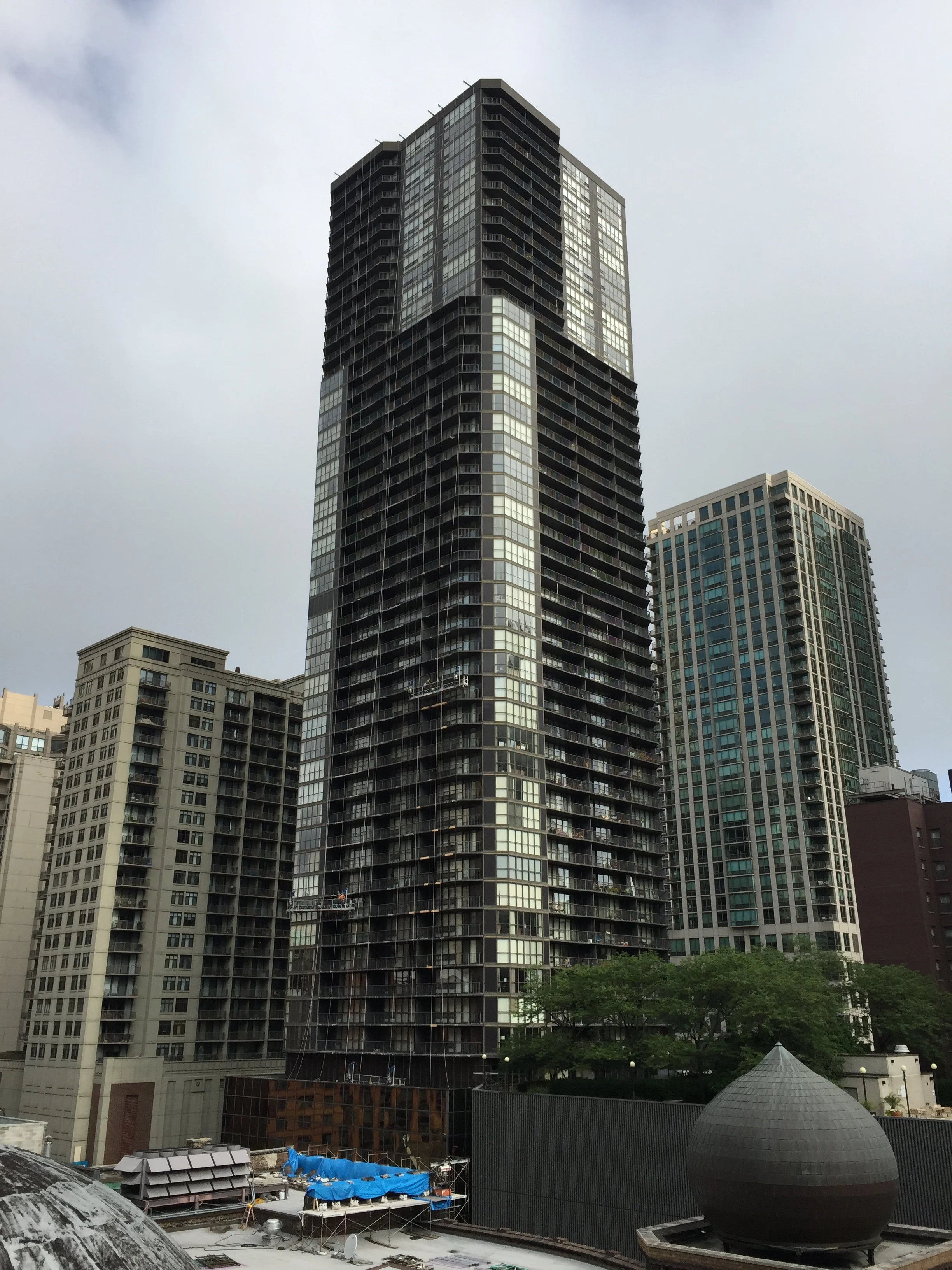

The Ontario Place Condominium is a 51-story residential building. The original development plan was to construct a high-rise rental apartment building. The tower was converted to condominiums in the mid 2000s.

The building consists of a six-story rectangular commercial base structure and a residential tower extending from floor 7 through 51. The lower half of the exterior walls of the residential structure consist of exposed concrete columns and continuous cantilevered balconies with aluminum handrails. Remaining portions of the exterior walls consist of an aluminum and glass window system which extends floor-to-ceiling with aluminum slab edge covers.

The scope of Exterior Wall Repairs addressed the deterioration to the existing concrete structure, as well as make-safe repairs to the existing aluminum railings.

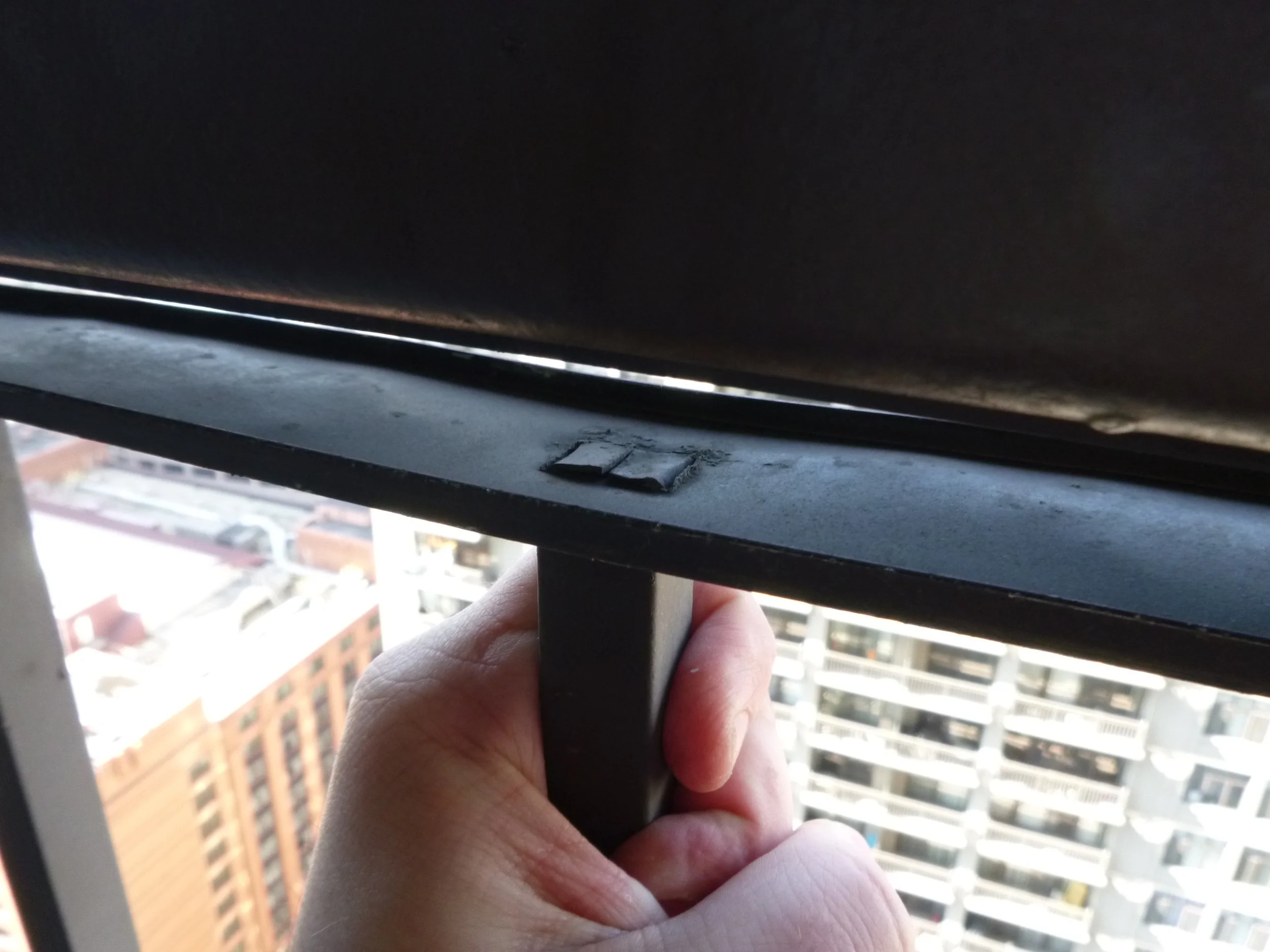

  • Removal and replacement of deteriorated embedded aluminum railing posts

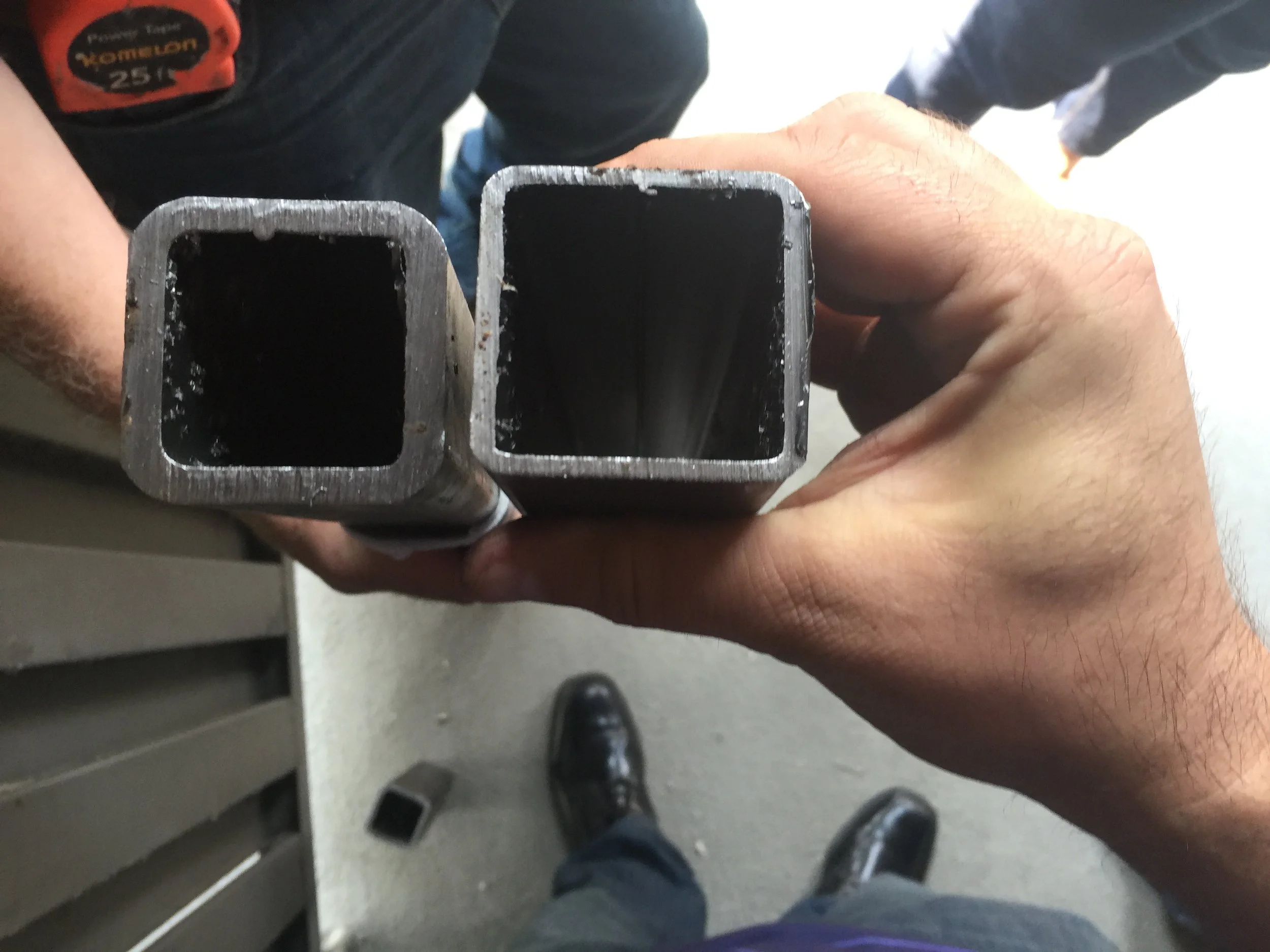

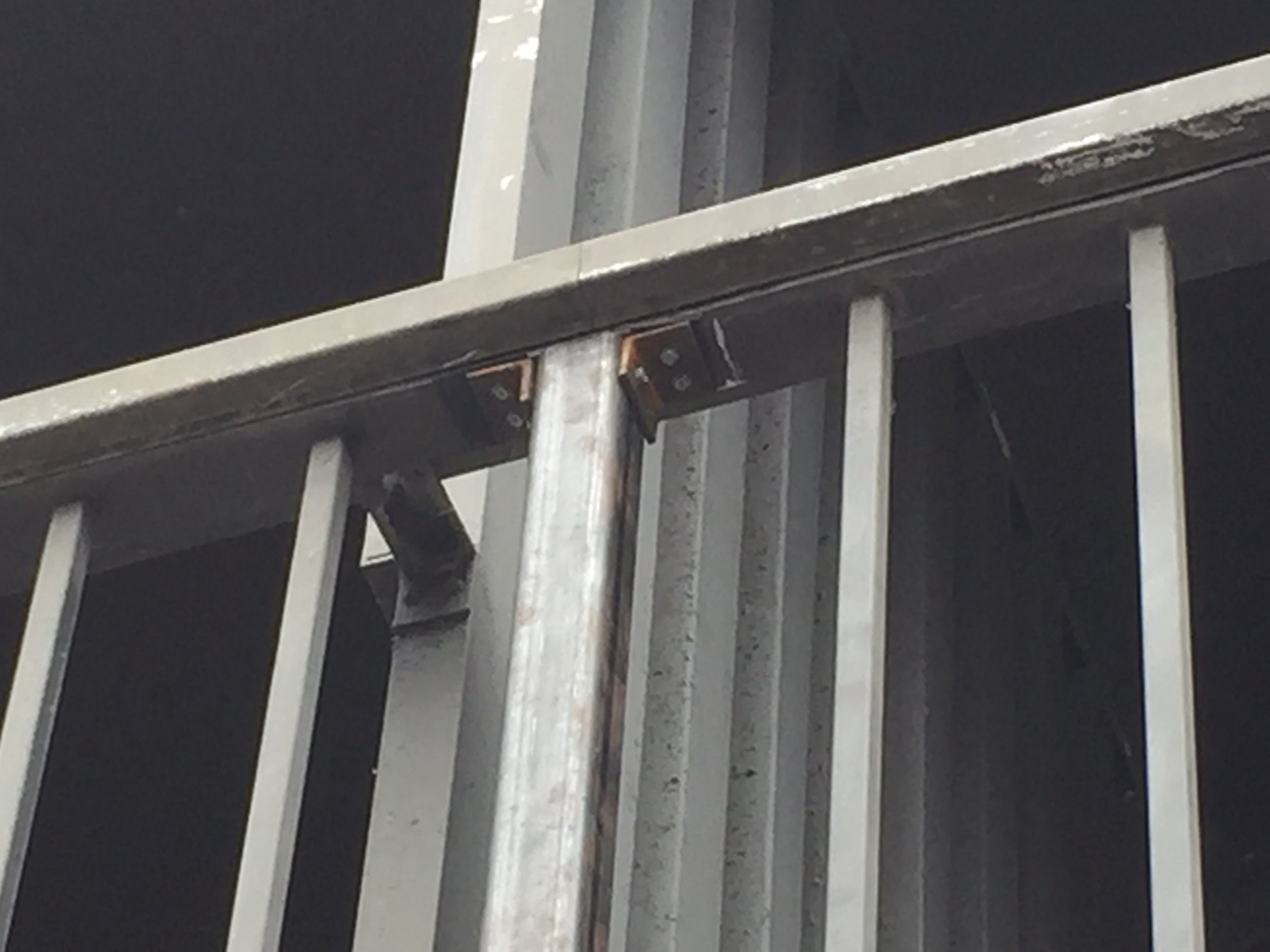

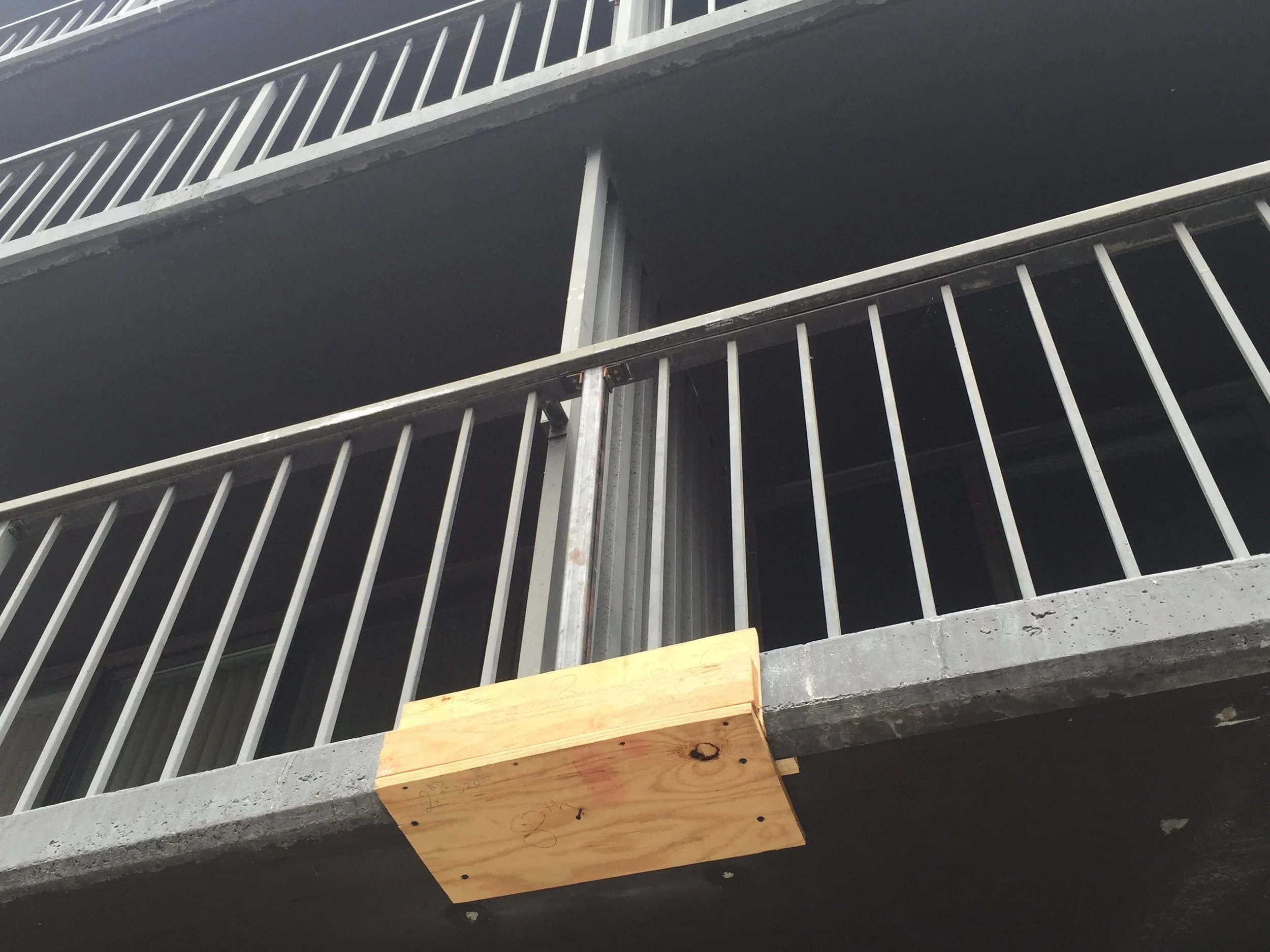

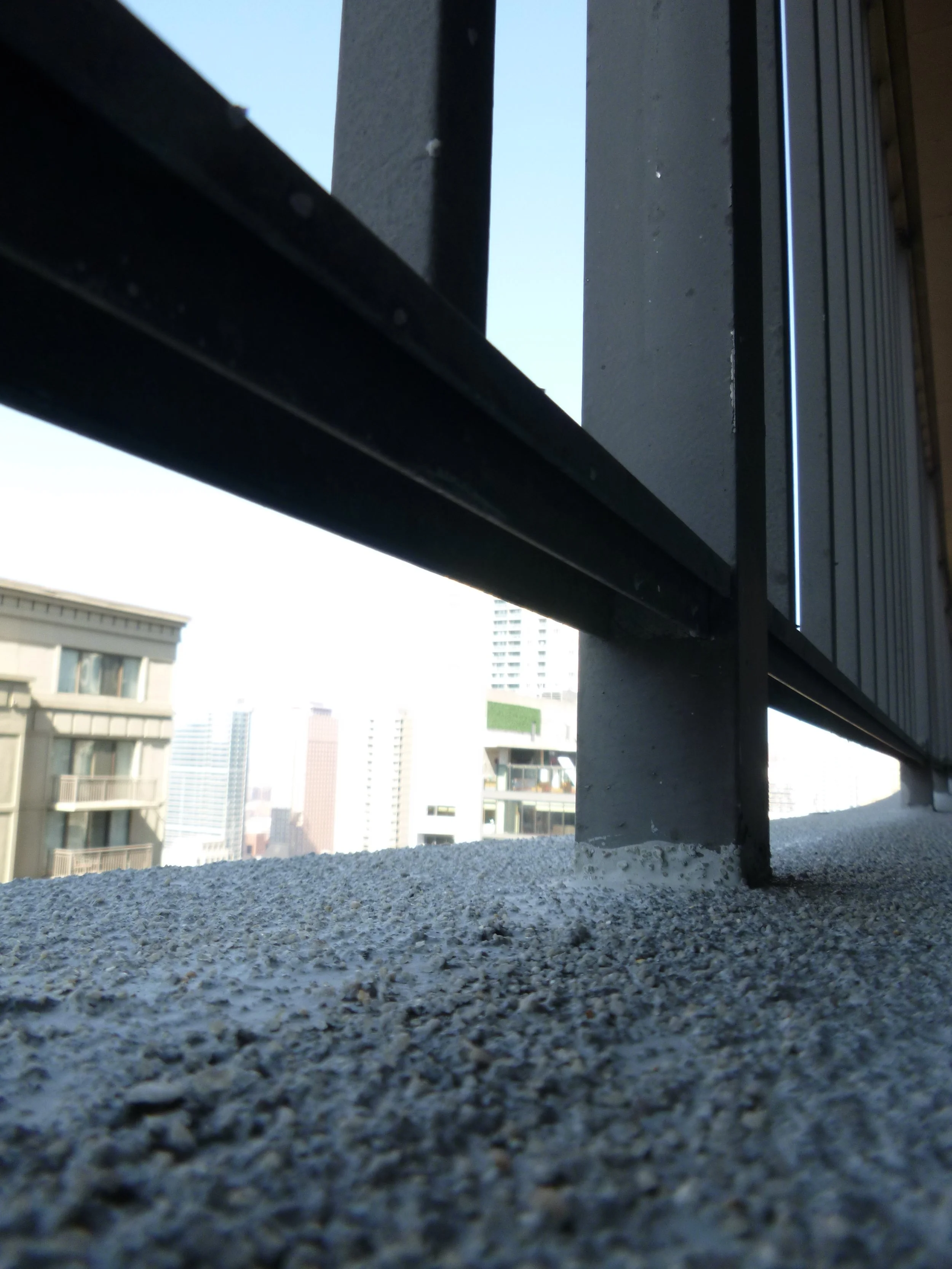

  • Installation of new steel railing posts (mechanically attached to existing aluminum railings)

  • Repair to the distressed areas of exposed concrete

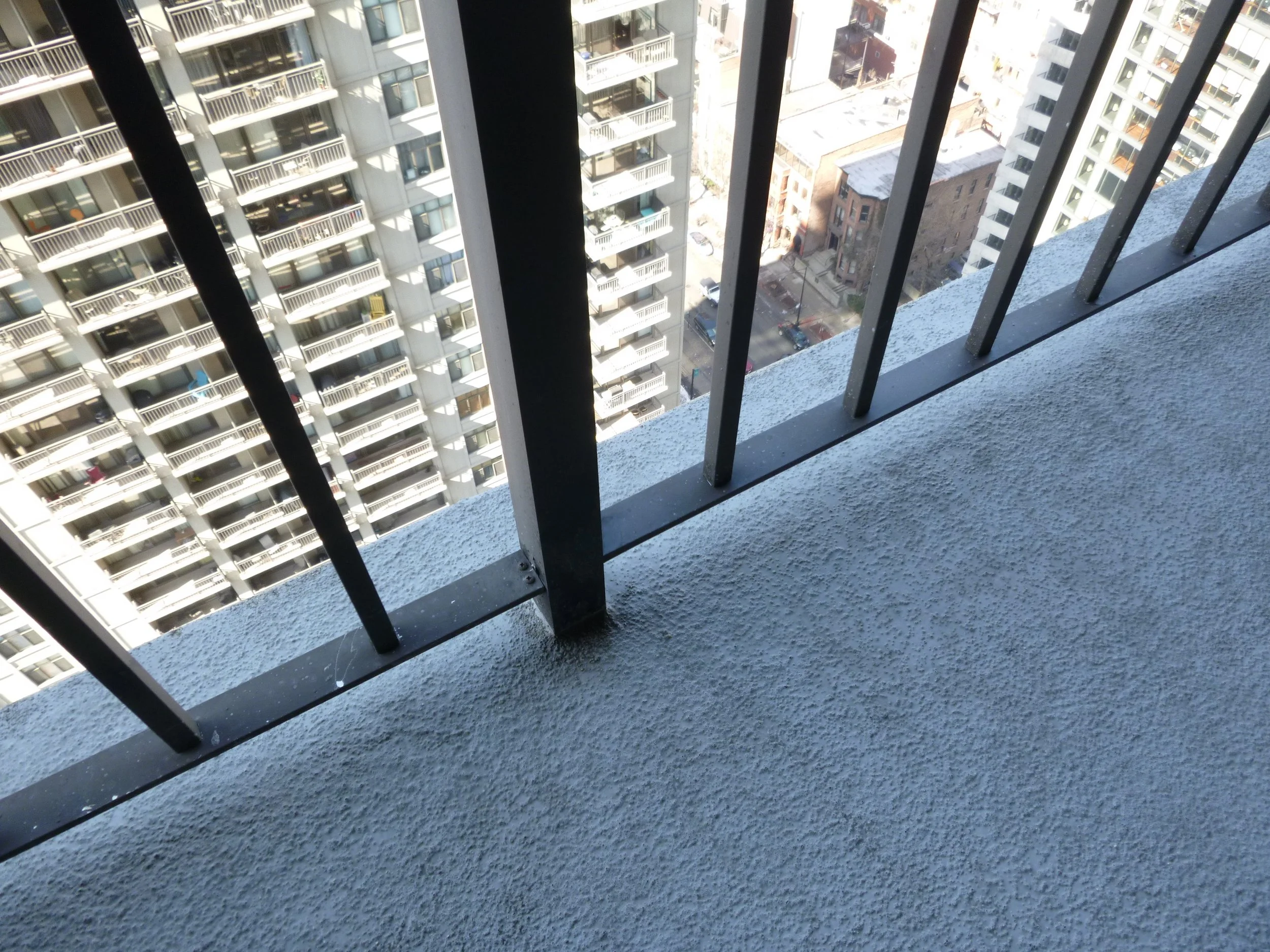

  • Installation of a new waterproofing membrane to the topside of the balcony surfaces

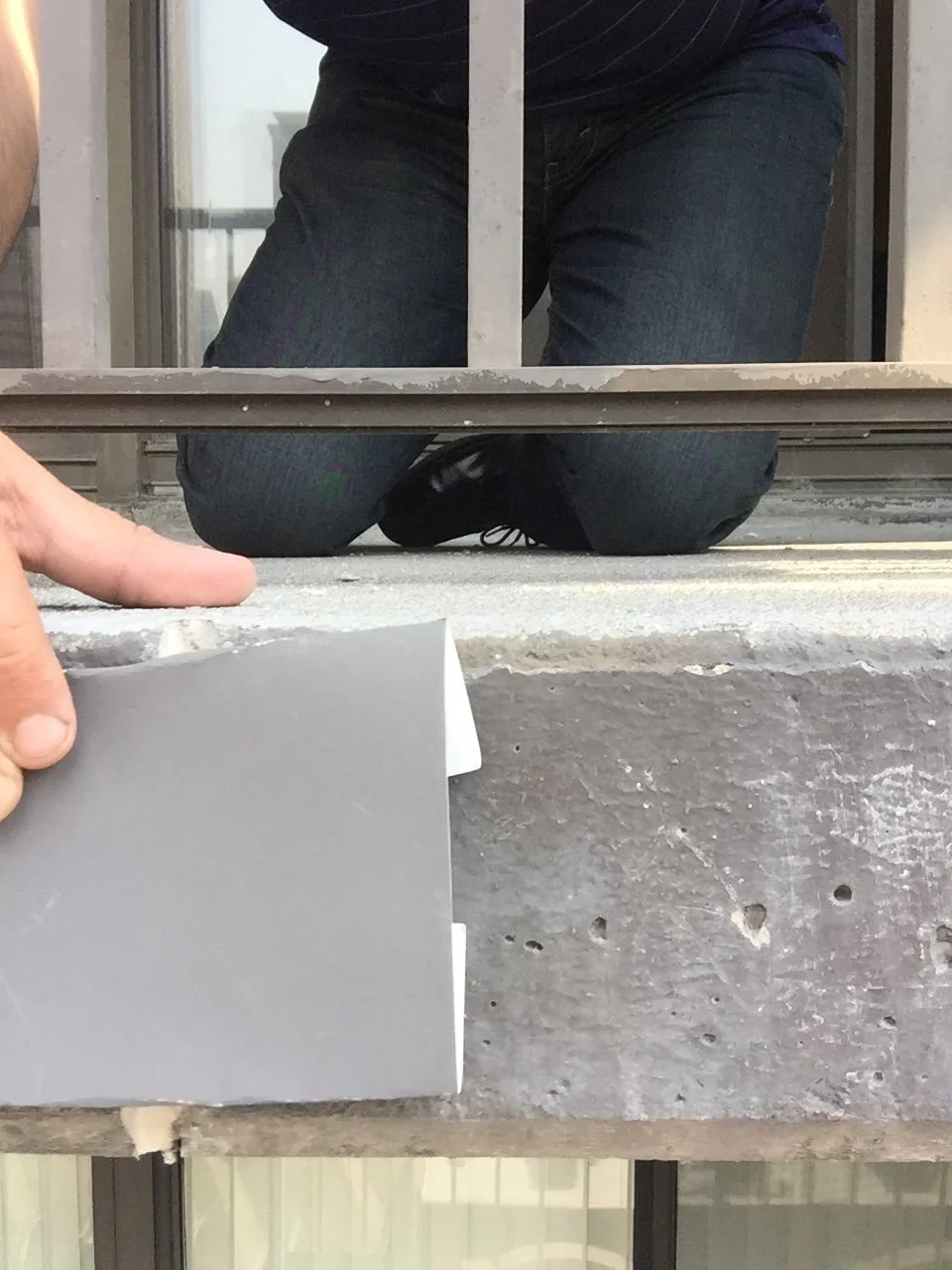

  • Cleaning and application of a new coating at all exposed concrete surface
